Rack mount for 1-2 pcs Raspberry Pi boards, select what pi model for each position when you order.
Also available for 3-4 Pi boards, please contact me.
Also available for 3-4 Pi boards, please contact me.
Rack width: 19 inch 1U height
Color:
Black or Silvergrey (Silvergrey is very close to the UniFi silver color).
Black or Silvergrey (Silvergrey is very close to the UniFi silver color).

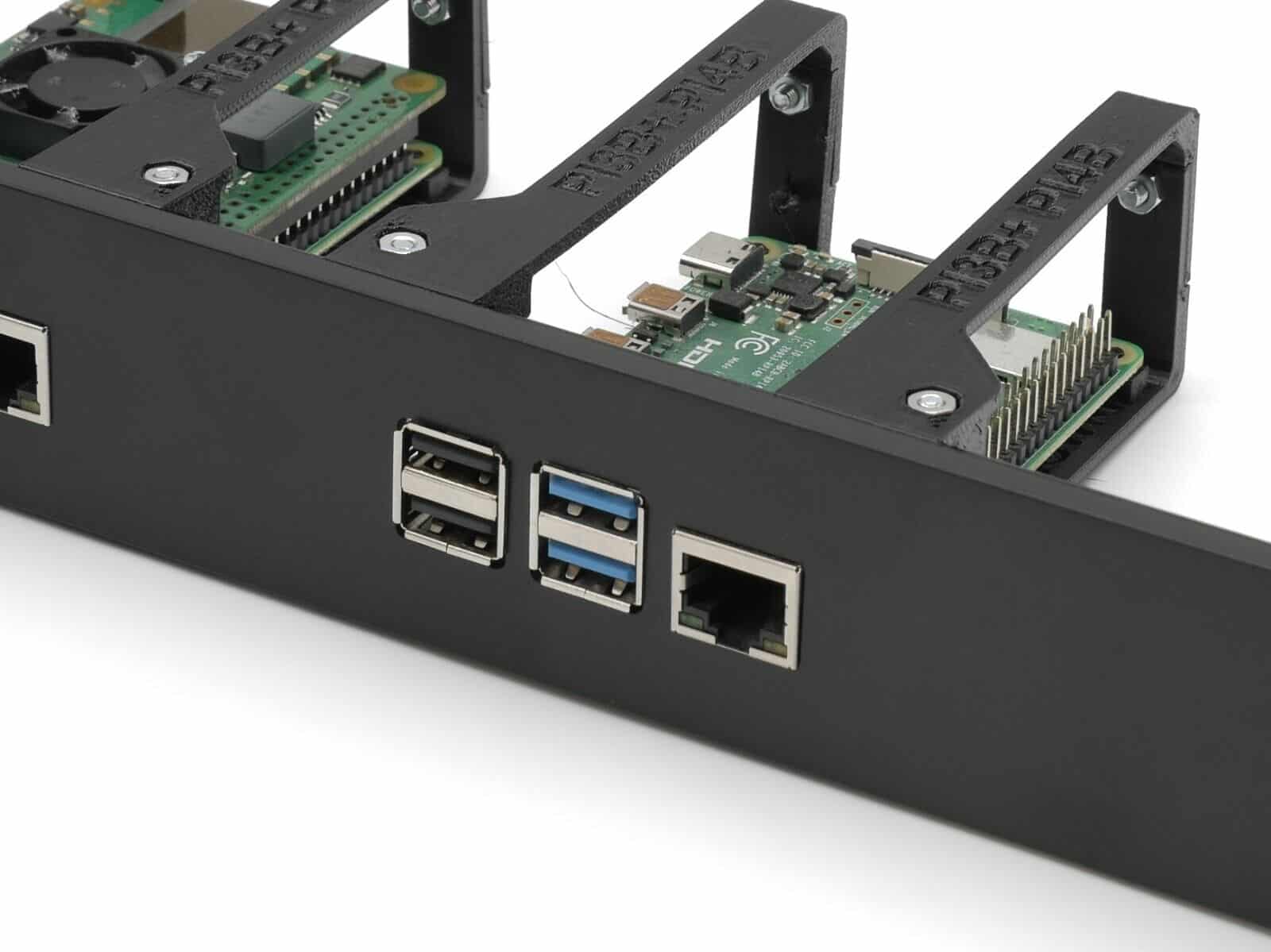

Orientation: Raspberry Pi3B/3Bplus, Pi4 and Pi5, always USB/ethernet ports face forward.

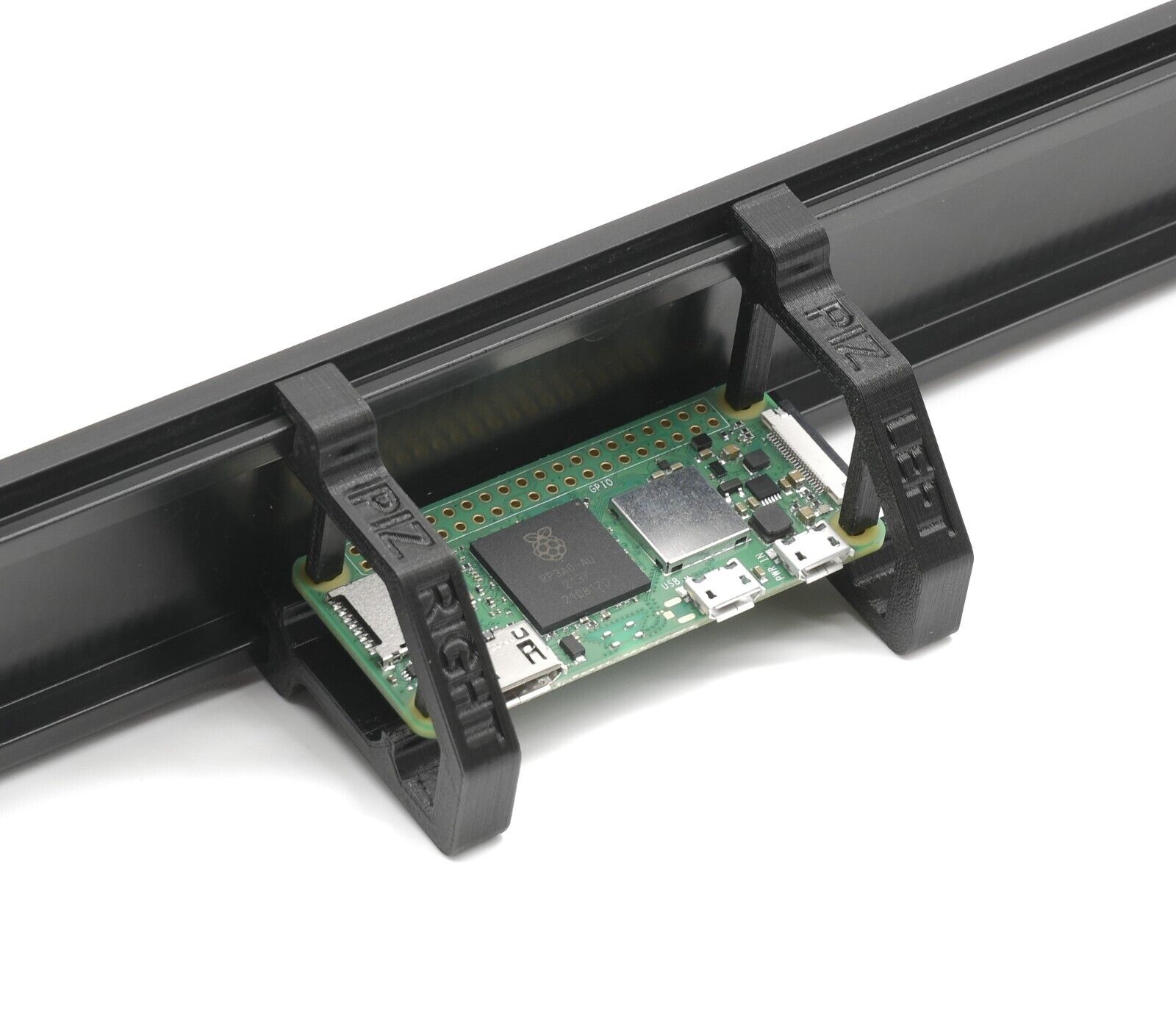

Pi zero is hidden behind the front panel, see photo.
Pi zero is hidden behind the front panel, see photo.

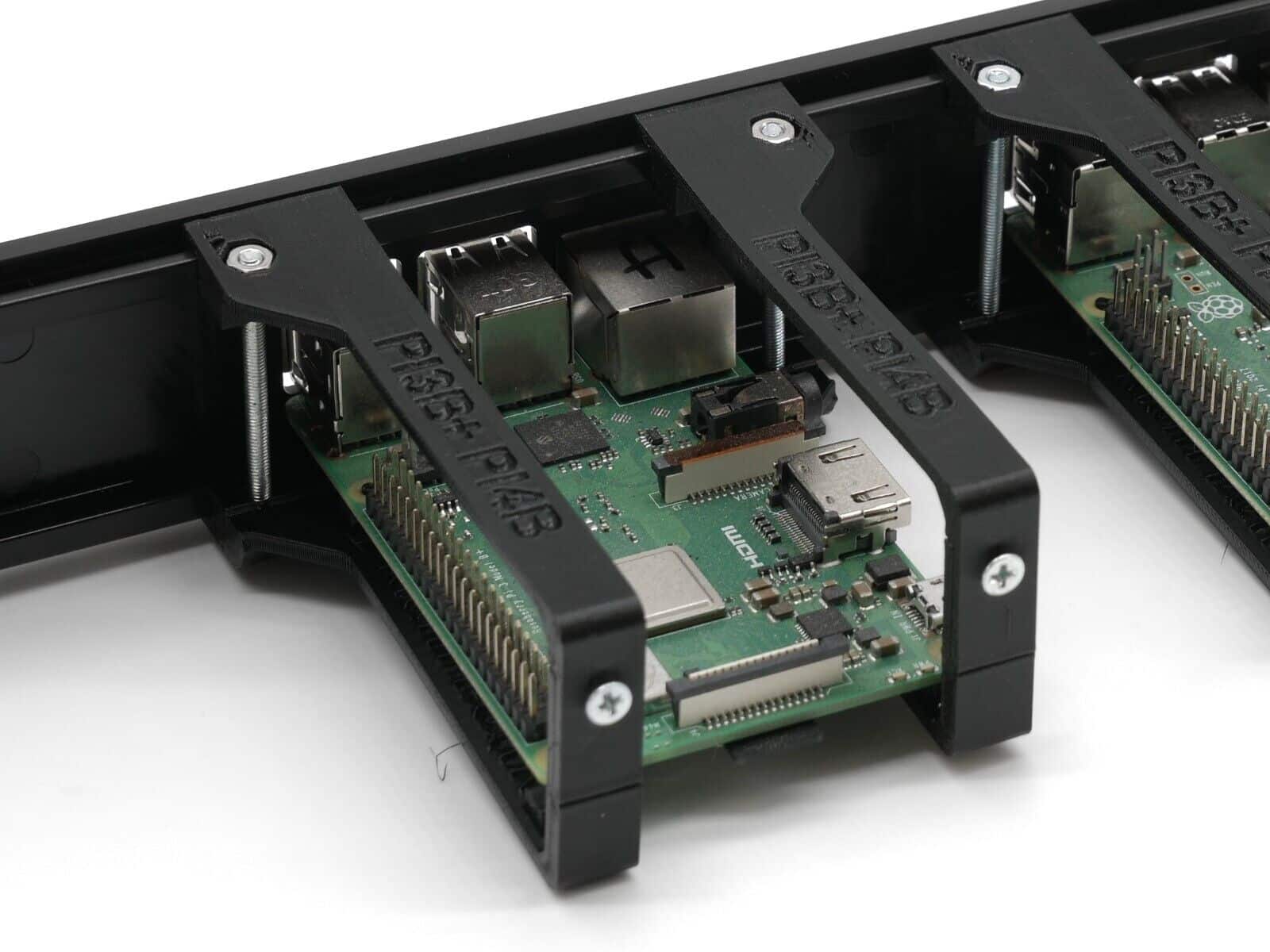

We mount the Pi:s from left to right(default order), 1-2 Pi boards will be mounted on the left-half of the 19inch 1U panel
If you want them on the right half, please contact me directly after you order.
Benefits:
– Accurate cut-out specific for each Pi model allowing for elegant rack mount, not just a square hole.
– Perfect surface finish, scratch proof thanks to the injection molded front panel.
– Injection molded allow for high surface finish, strength and no sagging
– Assembly work required – 5 minute easy work
– Assembly work required – 5 minute easy work
– Reasonable priced.

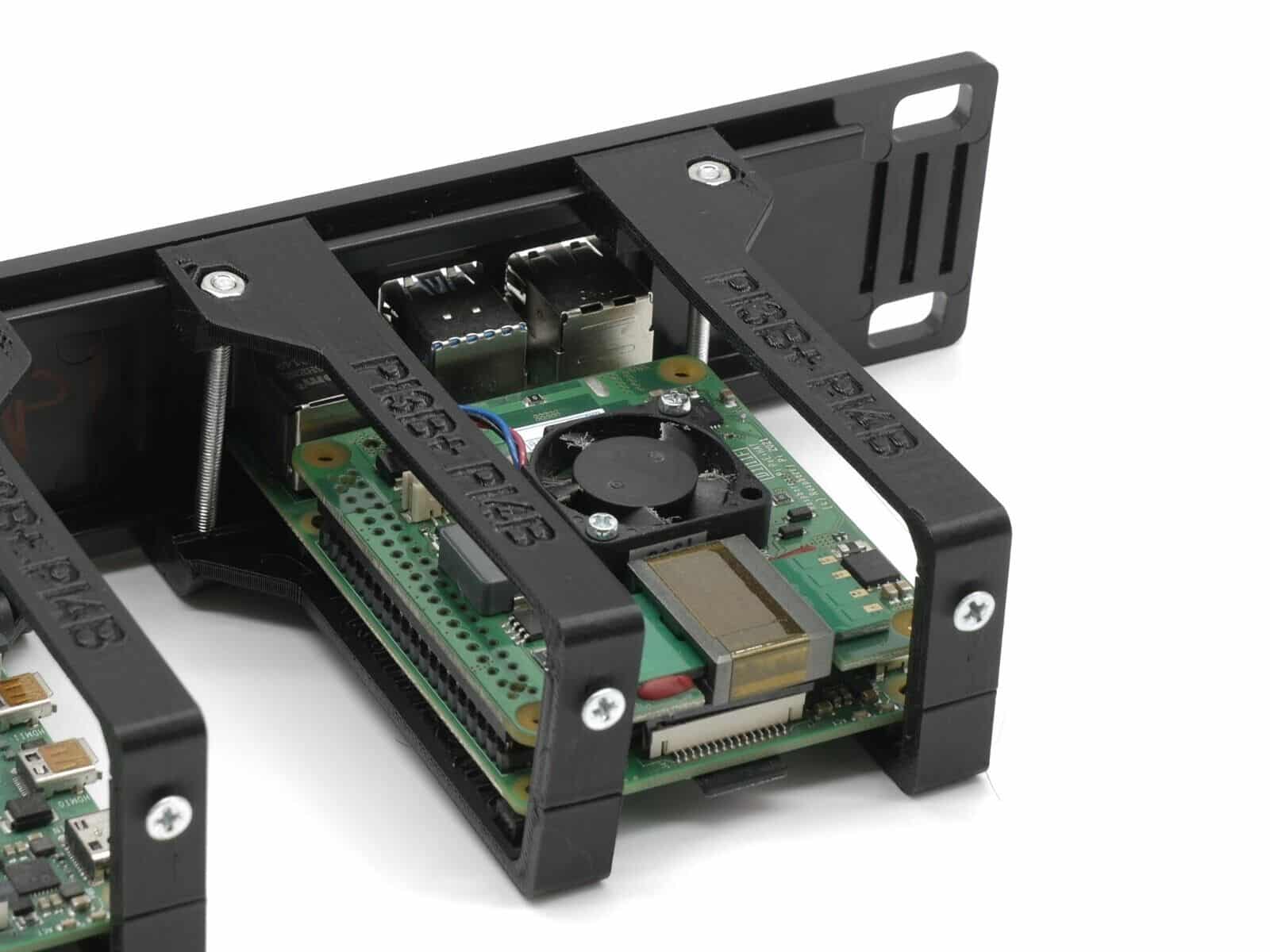

Is PoE hats supported?
Yes, this rack mount works with PoE hats with our without. We use the rear screw holes to mount the main Pi boards, the PoE hats will sit secure using the big GPIO connector.
Is there a bracket for an external NvME SSD disk?
No, but you can connect it via a cable and place it yourself behind the front panel.
Made of injection molded ABS/PC plastic front panel and 3D printed rear-arms in PETG.
Assembly guide included, takes 5 min. to assemble
The Pi boards in the pictures is not included in the rack mount product.
Any questions? Please contact me via Ebay message, I reply normally within a few hours.
